Delivey in 6-10 weeks. get in touch for ordering, accurate timeframe or CUSTOM Builds

The new Ekano Enduro is the logical evolution of the Ekano 2 AL and takes e-enduro riding to a new level – with a focus on maximum performance and maximum riding fun. Optimised geometry, a chassis tuned for rough terrain, robust components and the new cutting-edge Avinox e-drive ensure full action and maximum control.

Performance you can feel

Our in-house PRO10 frame system It responds sensitively and ensures consistent grip, high traction, and ample support, even on challenging terrain. No performance limitations: the geometry, optimized for enduro use, and the suspension, perfectly tuned for rough terrain, ensure smooth handling and stability. Even when things get rough and fast, the handling remains controlled, giving you confidence.

DJI Avinox Full Power Drive

The Avinox drive system takes eMTB performance to a whole new level.

Pure power meets smart features – lightweight and seamlessly integrated.
It adapts to the way you ride – adjusting support on the fly to match terrain and effort. So you get the power you need, exactly when it matters. Big power. Compact, quiet, and fully integrated.

The result: more power when it matters – complete control and perfectly tuned.

One bike. Two options.

Thanks to the matching dropouts, you can choose your Ekano AL Enduro exactly as it suits your riding style.

Greater smoothness and stability with longer chainstays.
More agility and maneuverability with short chainstays.

Key Features:

DJI Avinox System: Up to 150 Nm | 800 Wh

Travel: 170/160 mm

Wheel size: Mix

Frame: Blend Alloy

SPECS:

Fork	RockShox Domain Gold RC 170mm
Shock	RockShox Deluxe Select
Electric drive	Avinox M2 Motor Avinox 600 Wh Battery Avinox DPC100 Display Avinox 4 A / 168 W Charger
drive train unit	SRAM Eagle 70 Transmission (1x12)
Crank	Practice TYPE2 ALLOY 155mm 34T
Brakes	SRAM DB8 Stealth 200mm / 200mm
Wheel size	NEWMEN Performance 30 Base
Tires	Continental Kryptonite Enduro
Stem	Classic Internal & Sixpack Vertic
Handlebar	Sixpack Millenium 805 30mm Rise
Grips	Sixpack Millennium Alloy
Seatpost	OneUP V3
Saddle	Ergon SM10 Enduro

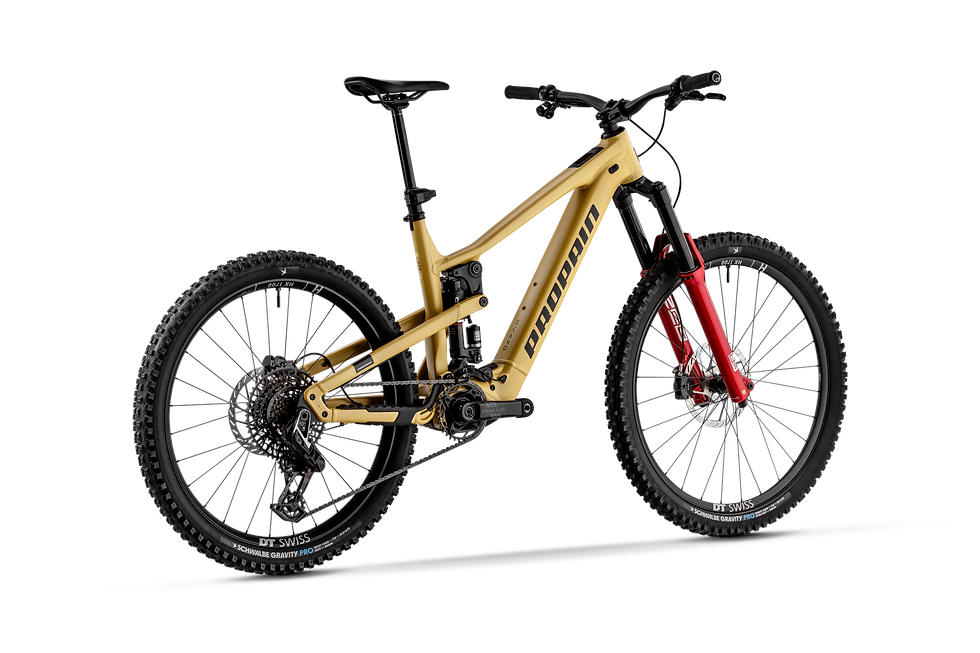

Propain EKANO AL Enduro - Base - Avinox E-Bike

Name: Propain EKANO AL Enduro - Base - Avinox E-Bike
Brand: Propain

$9,990.00

Frame Colour

Size

Payment Method

Spring Rate & Seat post length:

0/20

Decal & Badge Colour:

0/30

Quantity

S: 158 - 172 cm

M: 168 - 182 cm

L: 178 - 192 cm

XL: 188 - 202 cm

170 mm Fork

Recommended Position

	Size S	Size M	Size L	Size XL
* Measured 200 mm from center of bottom bracket
Wheelsize -Flip Chip Position	Mix– short Mix -long	Mix– short Mix -long	Mix– short Mix -long	Mix– short Mix -long
Frame height (A)	410 mm	430 mm	455mm	480 mm
Fork offset (B)	44 mm	44 mm	44 mm	44 mm
Fork length (C)	586mm	586mm	586mm	586mm
Head tube length (D)	110 mm	115 mm	120 mm	130 mm
Reach (E)	435mm	450 mm	475mm	500mm
Stack (F)	633 mm	638mm	642 mm	651 mm
Head angle (G)	63.5°	63.5°	63.5°	63.5°
Seat angle – real (H)	77.1°	77.1°	77.1°	77.1°
Seat angle – effective (I)	78°	78°	78°	78°
Top tube length (J)	570mm	586mm	611 mm	638mm
BB offset (K)	8 / 28 mm	8 / 28 mm	8 / 28 mm	8 / 28 mm
Chainstay length (L)	Length: 452 mm short: 447 mm	Length: 452 mm short: 447 mm	Length: 452 mm short: 447 mm	Length: 452 mm short: 447 mm
Wheelbase (M)	Length: 1238 mm short: 1233 mm	Length: 1255 mm short: 1250 mm	Length: 1282 mm short: 1277 mm	Length: 1312 mm short: 1307 mm

Avinox M2 drive	1100 W max. power 250 W nominal power 125 Nm in boost mode 110 Nm in the other modes approx. 800 % max. assist ratio approx. 2.65 kg ISIS crank arm
Avinox M2S drive	1300 W max. power 250 W nominal power 150 Nm in boost mode 130 Nm in the other modes approx. 800 % max. assist ratio approx. 2.59 kg ISIS crank arm
Avinox FS600 battery	permanently installed 600 Wh approx. 2.87 kg
Avinox FS800 battery	permanently installed 800 Wh approx. 3.74 kg
Avinox DPC100 Control Display	2.0-inch OLED 326 ppi BLE 5.3 USB-C, 10W charging GPS, Galileo IMU, compass, barometer
Avinox DP100-F Control Display	2.0-inch OLED 326 ppi LTE Cat. 1 BLE 5.1 USB-C, PD3.0 65W Fast Charging GPS, Galileo IMU, compass, barometer, ambient light sensor
Avinox 168W charger (for round port)	4 A 150 x 70 x 32 mm (L x W x H) 545 g
Avinox 508 W charger (for round port)	12 A 185 x 75 x 37 mm (L x W x H) 985 g
Shock length	210 mm
Shock travel	55 mm
Shock bushings	Top: 8 x 35 mm Bottom: 8 x 30 mm
Travel (Frame)	160 mm
Max. Travel (Fork)	170 mm
Brake mount (Frame)	PM200
Seatpost diameter	31.6 mm
Seat clamp diameter	36.4 mm
Max. Seatpost insert length	Frame size S: 195 mm Frame size M: 230 mm Frame size L: 250 mm Frame size XL: 275 mm
Headset (S.H.I.S.)	ZS56/ZS56
Rear wheel axle	148 mm
Chainguide mount	Sixpack Vertic / custom
Derailleur hanger	UDH
Wheel Size	Mix
Max. system weight	130kg

	S	M	L	XL
* Inseam leg length in cm
OneUp V3 120 mm	69	71	74	76
OneUp V3 150 mm	75	74	77	79
OneUp V3 180 mm	81	80	80	82
OneUp V3 210 mm	88	86	87	87
Bikeyoke Revive 3 125 mm	71	72	75	77
Bikeyoke Revive 3 160 mm	78	76	78	81
Bikeyoke Revive 3 185 mm	83	81	82	83
Bikeyoke Revive 3 213 mm	89	88	88	88
Fox Transfer Factory 120 mm	70	72	74	77
Fox Transfer Factory 150mm	76	75	77	80
Fox Transfer Factory 180 mm	82	81	81	83
Fox Transfer Factory 210 mm	89	87	88	88
Fox Transfer Factory 240 mm	96	94	95	95
RockShox Reverb AXS 125 mm	73	75	77	80
RockShox Reverb AXS 150mm	78	78	80	82
RockShox Reverb AXS 175 mm	83	82	82	85
RockShox Reverb AXS 200 mm	88	87	87	87
RockShox Reverb AXS 225 mm
